Programming Practice

A magic square of scale n (n is a positive odd integer) is a two-dimensional n´n square matrix with elements from 1 to n2 (no-repetition) such that the sums of the integers in a row, a column, the diagonal, or the anti-diagonal is identical, i.e., the sum is of value (1+n2)n/2. The followings are magic squares of scale 3 and 5:

Magic square of scale 3:

6 1 8
7 5 3
2 9 4

Magic square of scale 5:

15 8 1 24 17
16 14 7 5 23
22 20 13 6 4
3 21 19 12 10
9 2 25 18 11

The algorithm of constructing magic square of scale n is described below:

  1. Place 1 in the central element of the top row.
  2. After placing element k, place k+1 as the following step until n2.
  3. Imagine the matrix is a circularly linked in the horizontal and vertical direction as a torus,
    1. Place k+1 in the upper-left cell of k, if that cell has no integer;
    2. Place k+1 in the cell below k, if the upper-left cell is occupied.

Write a C program to read a positive odd integer n, where 3≤n<20, then generate and output the magic square of scale n. Also, verify the result by adding all elements in each row, each column, the diagonal, and the anti-diagonal. Note that a magic square is symmetric horizontally and vertically with rotating 90o, 180o, or 270o.

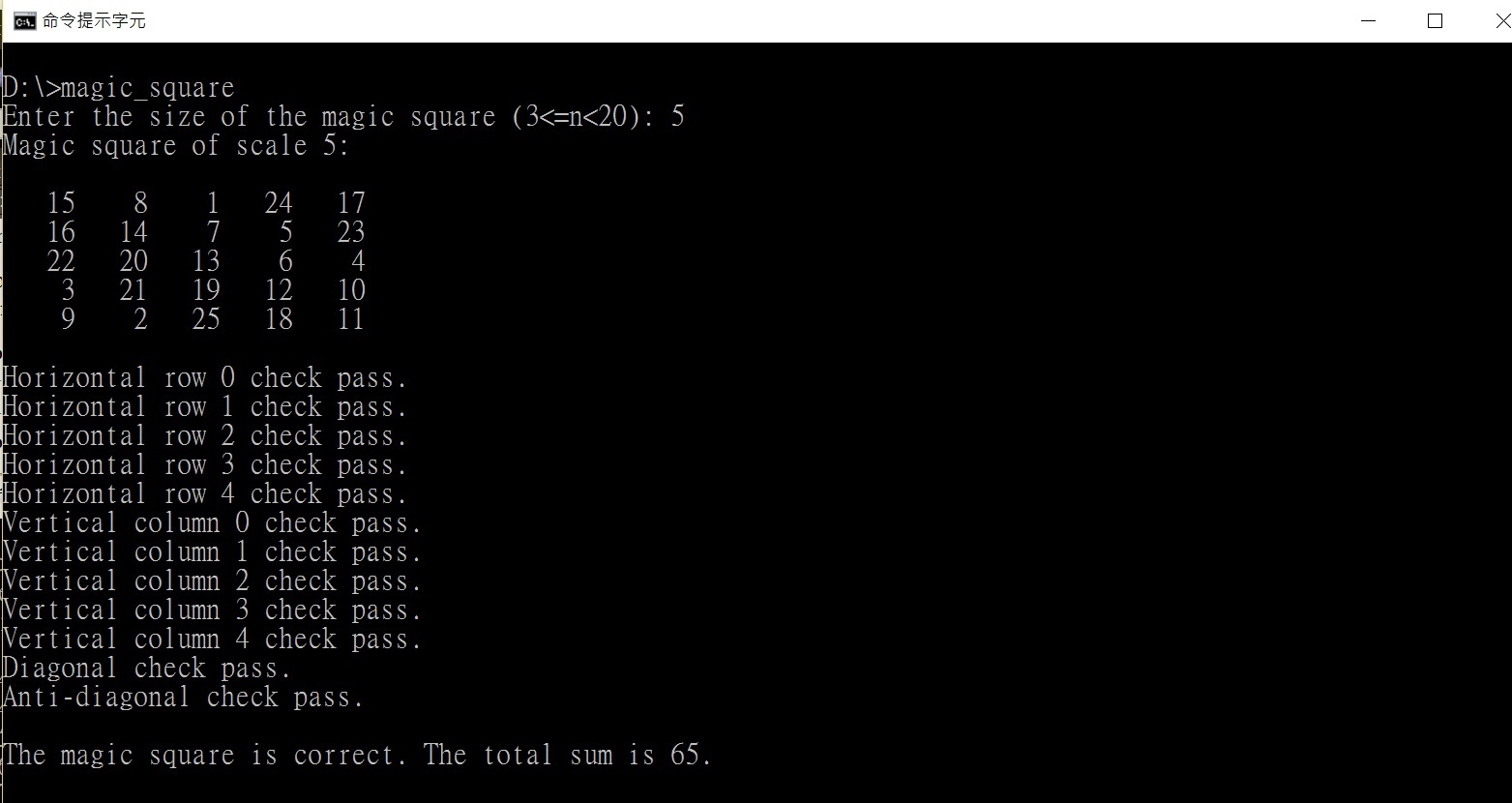

Execution example of magic square of scale 5:

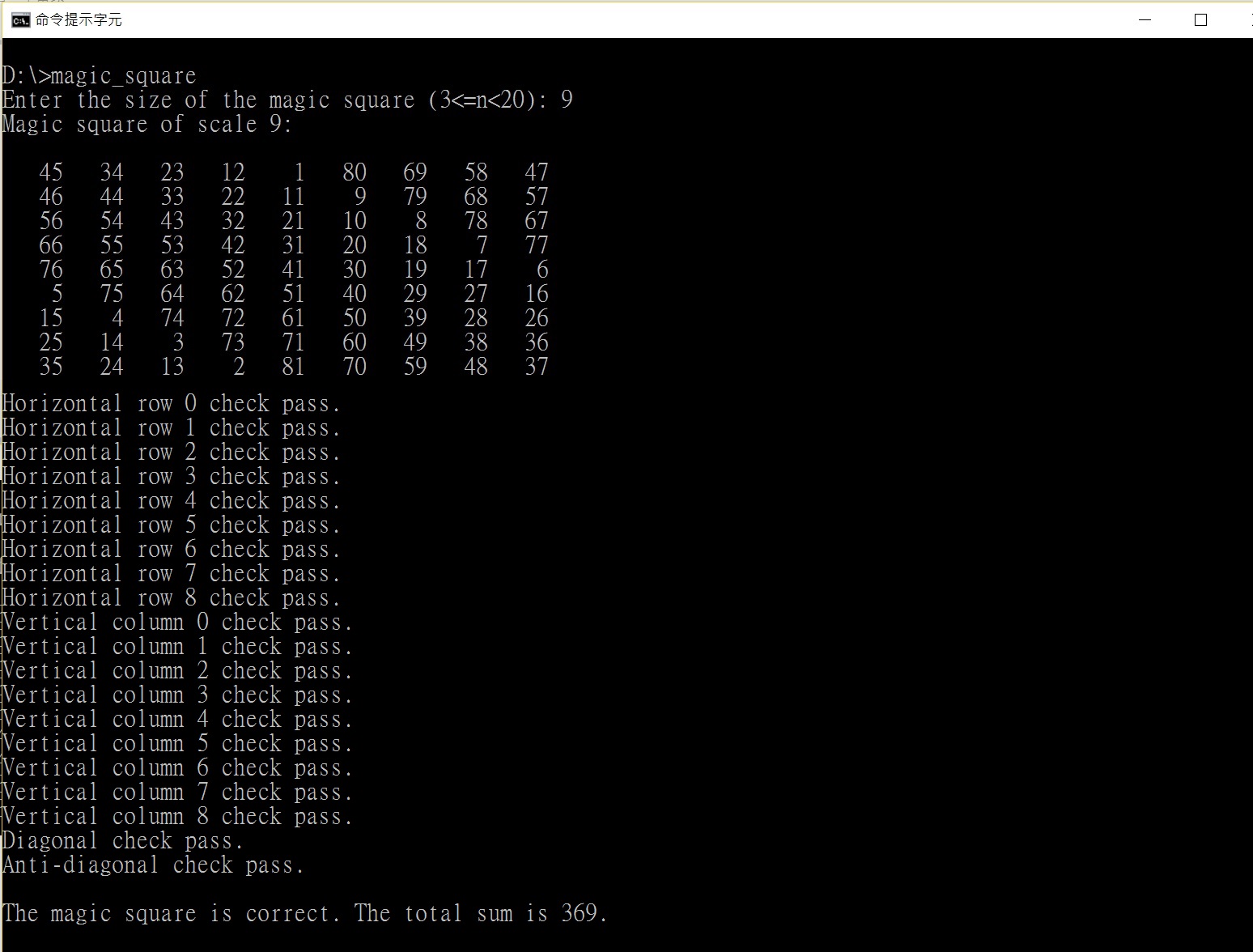

Execution example of magic square of scale 9:
